Place of Origin:
China
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
CE
Model Number:
GXPS900
Feature
Application
Introduction

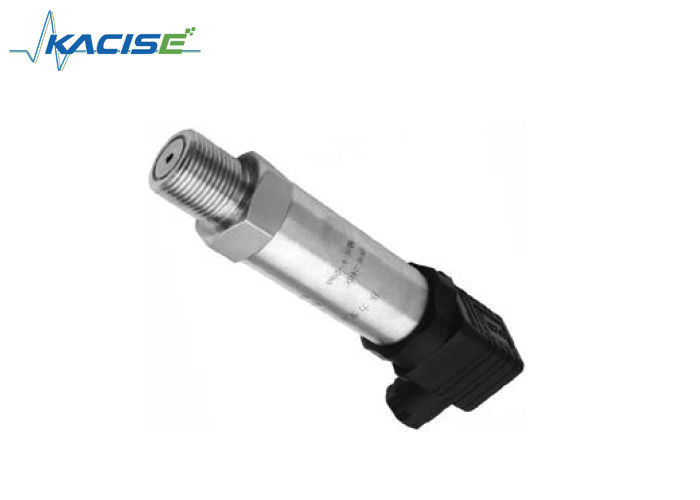

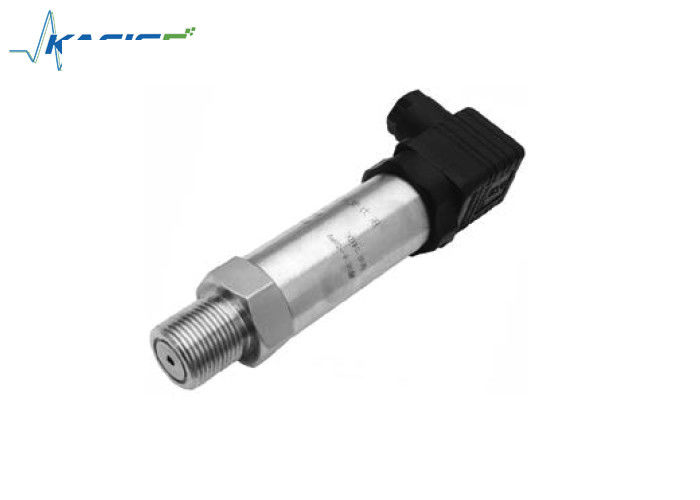

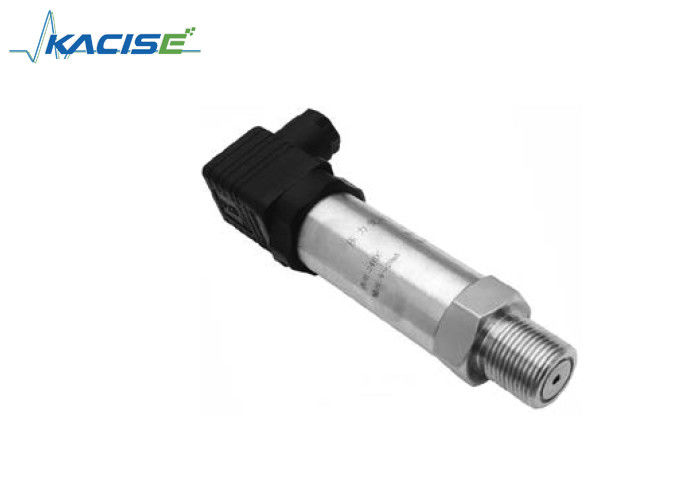

The GXPS900 Series pressure transmitter is a high-precision, high stability, temperature compensation products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.
The product uses 1Cr18Ni9Ti stainless steel structure, high precision pressure core, dedicated programmable transmitter converse the circuit, able to facilitate their zero and full scale for accurate calibration.
Two-wire Circulation output; three-wire voltage and current output.
Electronic interface and signals definition
Parameter
| Spec. | Value | |||
| Pressure range |
0~0.1MPa......60MPa 1bar…600bar 14.5psi…8700psi 10000MmH20…6118000mmH2O 0.98atm…592stm |
|||
| Load pressure | 2 times nominal value pressure (2X) | |||
| Accuracy | ±0.1%F.S | |||
| Stability | Typical value 0.1%F.S, | |||
| Operating temperature | -40°C~85°C | |||
| Compensation temperature | -40°C~85°C | |||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
| Electrical performance | 2 wire system | 3 wire system | ||
| Output signal | 4~20mA | 1~5V | 0.5~4.5V | |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | |
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
| Insulation | >100M Ω@50V | |||
| Electric strength | 500V@60 second | |||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
| Pressure durable | 1×108pressure circle @25°C | |||
| Electrical connection | Hirschmann , air plugs, fixed cable, water proof cable | |||
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |||
| Pressure type | G | Response time: 10ms | ||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
