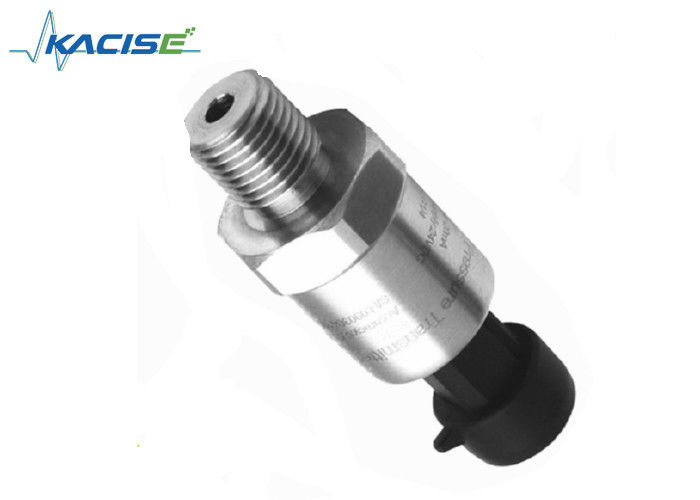

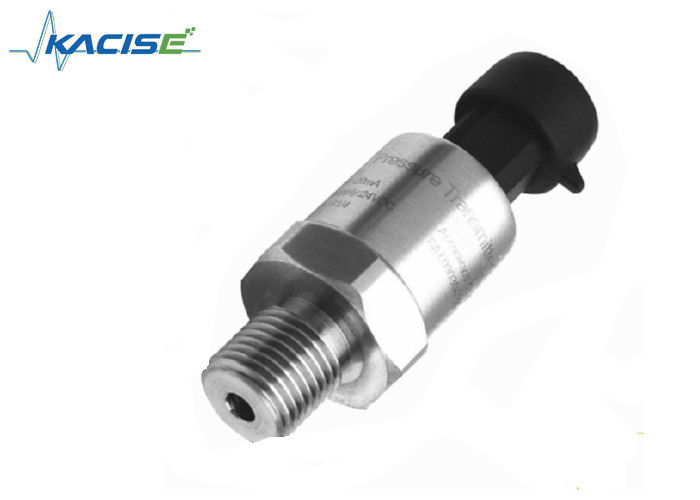

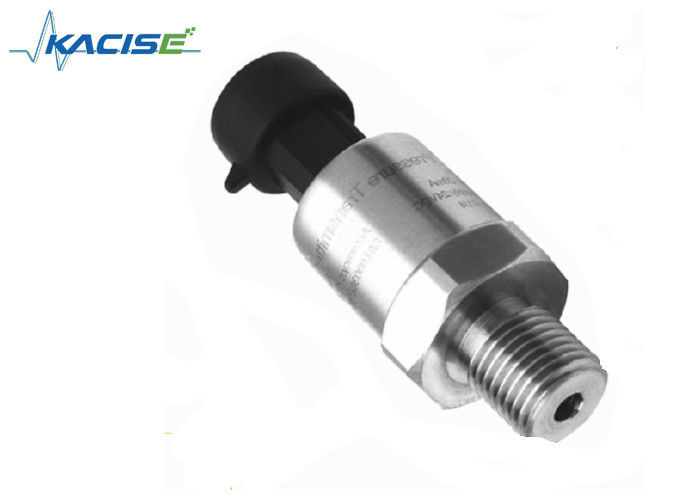

GXPS1100 High Stability Packard Connector Air Compressor Industry Pressure Transmitter

Application

• Compressor
• Floor house water supply
• Hydraulic control
• Air conditioning unit
• Automobile engine
• Automatic detection system
• Hydraulic unit

Feature

• Accuracy 1~4%F.S
• High stability, high reliability
• Imported German ceramic core body
• Digital calibration
• Packard connector
• Various of pressure port selection
• Zero can be arbitrarily displaced
• CE, and RoHS Compliant

Introduction

Barometric sensor is an instrument used to measure the absolute pressure of a gas. It is mainly used in physical experiments related to gas pressure, such as gas law, and can also be used in biological, chemical, industrial measurement of dry, non-corrosive gas pressure.

GXPS1100 series pressure transmitter is a high-volume, low cost OEM, civil, industrial, high-quality, high-reliability products. Small size, light weight, compact structure and are widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, using tuning and digital compensation techniques, and pass the intrinsically safe certification and CE certification.

Standard voltage output, current output mode.

Electronic interface and signals definition

Parameter

Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

• Type: GXPS1100=universal type
• Range: /0~5bar…50bar= the upper limitation of the range
• Output: 4~20mA, 0.5~4.5Vdc,
• Power: 10~30Vdc,
• Pressure port: G=G1/4, N=NPT1/4, U=7/16-20UNF
• Electric connection: P=Packard
• Cable length: XXm=XX meter 1-100m
• Package: Bb, Foam
