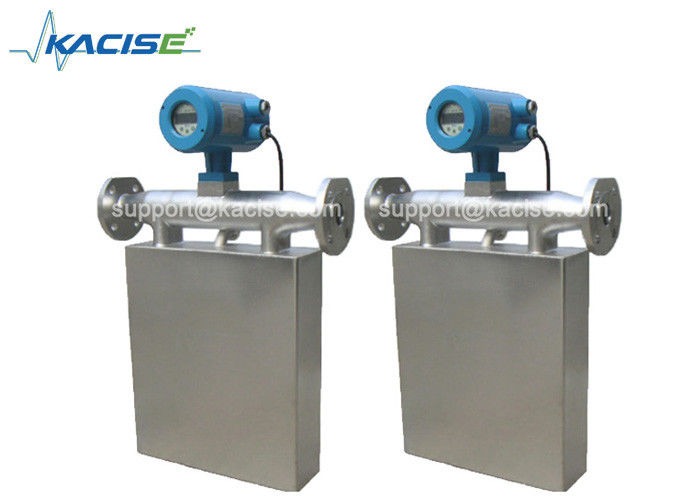

0.1 Precision Grade KMF-1-Series High Quality Liquid Coriolis Mass Flowmeter
Product Description
Kacise Mass Flow Meters patented and developed by our company (Chinese Patent No. 03119685.3, 03149996.1) are the leading meters for precision flow measurement. And with good reason, the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries — without the need for additional equipment, manual calculations, or estimations.
The meters are designed for unsurpassed performance in even the harshest operating environments. They have no moving parts, and any special mounting or flow conditioning requirements. Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.
The meters carry hazardous area approval for P. R. China.
Principles of Measurement
The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.
A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.
Configurations of Products
Classify of Products
Configurations

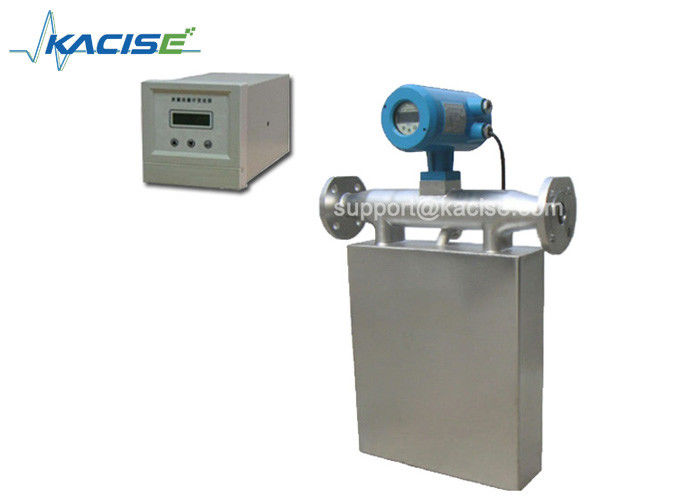

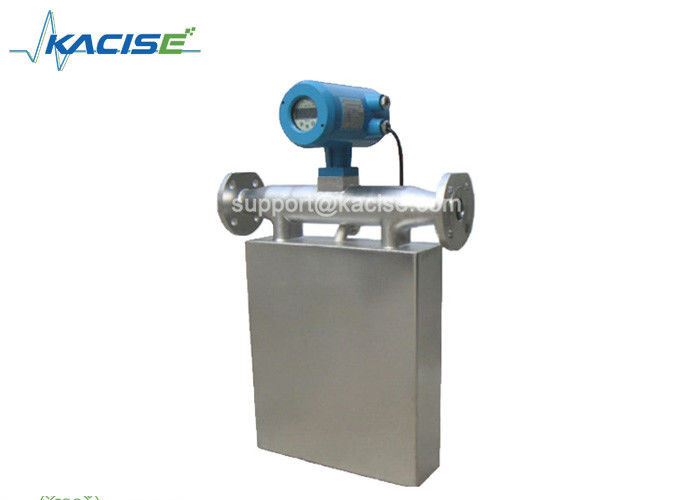

Figure 2 Essential Safety Transmitter Figure 3 Composite Transmitter and Sensor
Every meter consists of two parts: the sensor (primary meter) and the transmitter (secondary meter).
There are a vibrator, two displacement sensors and a temperature sensor in the sensor (primary meter).
The transmitter (secondary meter) is display part of the meter, also is electrical part. Its foundational functions are receiving and regulating the electrical signal from sensors. It can display, output, store and long distance transmit, and you can modify the parameters of flow meter. There is a diode safety barrier in transmitters; the function of the diode safety barrier is safeguard to isolating explosion.

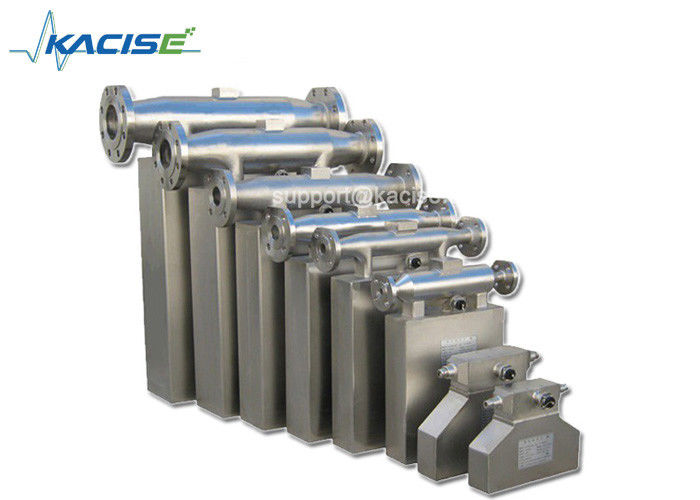

Parameters
| Module | DN | Measurement Scope | Work Pressure (MPa) | Connection Type(mm) |
| KMF-1-1AB | 1.5 | 0～4(kg/h) | 0～4 | Weld Joints Φ6×1.5 |
| KMF-1-1A | 3 | 0～40(kg/h) | 0～4 | Weld Joints Φ6×1.5 |
| KMF-1-1B | 6 | 0～100(kg/h) | 0～4 | Weld Joints Φ10×2 |
| KMF-1-2A | 8 | 0～200(kg/h) | 0～4 | Weld Joints Φ10×1 |
| KMF-1-3A | 10 | 0～500(kg/h) | 0～4 | Flange DN10 |
| KMF-1-3B | 15 | 0～1000(kg/h) | 0～4 | Flange DN15 |
| KMF-1-4 | 20 | 0～3000(kg/h) | 0～4 | Flange DN20 |
| KMF-1-5A | 25 | 0～10(T/h) | 0～4 | Flange DN25 |
| KMF-1-5B | 40 | 0～20(T/h) | 0～4 | Flange DN40 |
| KMF-1-6A | 50 | 0～30(T/h) | 0～4 | Flange DN50 |
| KMF-1-6AB | 65 | 0～50(T/h) | 0～4 | Flange DN65 |
| KMF-1-6B | 80 | 0～100(T/h) | 0～2.5 | Flange DN80 |
| KMF-1-6C | 100 | 0～150(T/h) | 0～2.5 | Flange DN100 |
| KMF-1-6CD | 125 | 0～200(T/h) | 0～2.5 | Flange DN125 |
| KMF-1-6D | 150 | 0～400(T/h) | 0～2.5 | Flange DN150 |
| KMF-1-6E | 200 | 0～500(T/h) | 0～2.5 | Flange DN200 |
Mass flow meter installation
Instrument Selection
