Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQA12

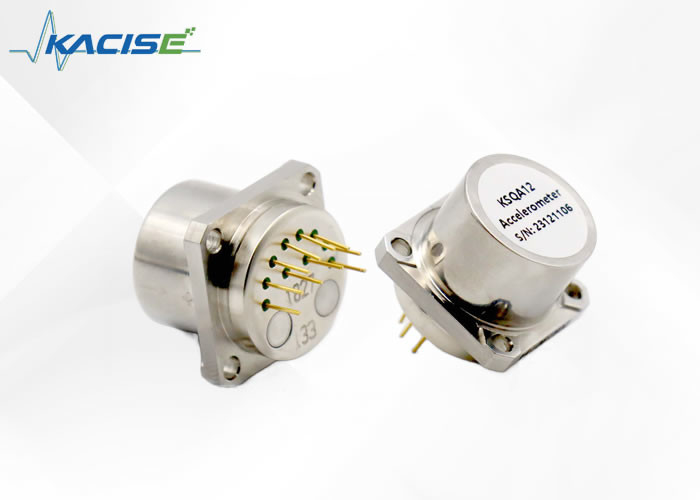

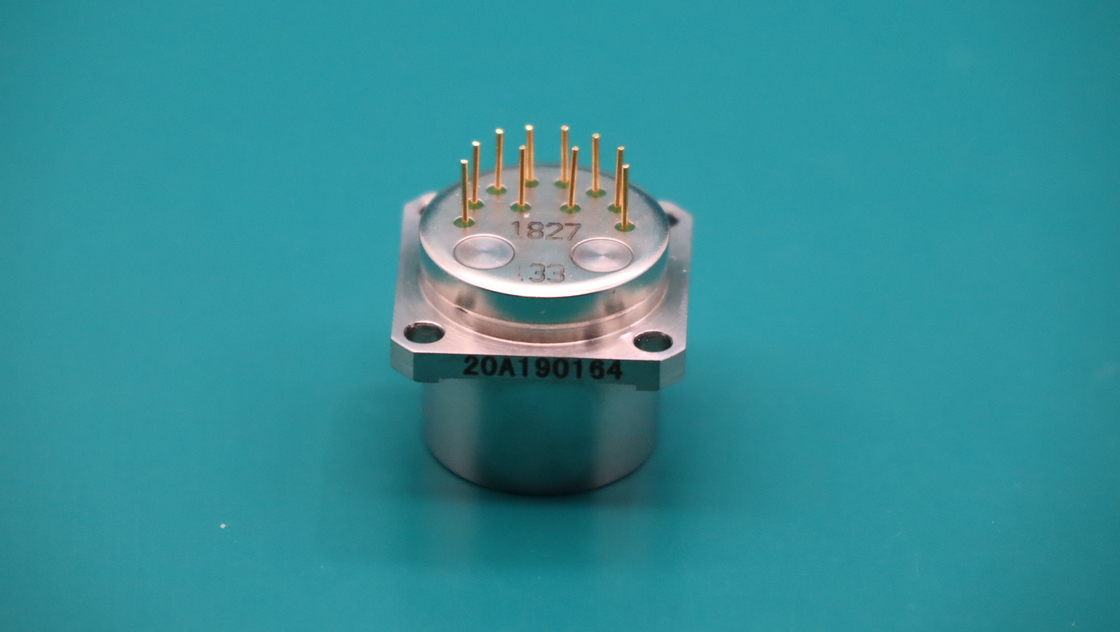

The Quartz Flexible Accelerometer is a precision instrument that is made up of quartz glass flexible support and an advanced servo circuit based on the principle of inertia. When the device experiences acceleration, the output of the accelerometer is proportional to the input acceleration with high accuracy.
Our accelerometer has a current output form of high output impedance. Users have the option to choose the sampling resistance based on their requirements, without affecting the stability of the system. We are proud to offer a range of Quartz Flexible Accelerometers, starting from the high-precision µg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer, among others.
Our accelerometers find use in various fields such as Aerospace, Aviation, Navigation, Ship, Vehicle, Petroleum, Geotechnical Engineering, and many others. These instruments provide signals for navigation, guidance, control, leveling, monitoring, and other systems with high precision.
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
| Parameter | KSQA12A | KSQA12B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±80g | ±30g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤40μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤40μg | ≤80μg |
| Scale Factor | 0.6 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤60ppm/°C | ≤60ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤80ppm |
| Linearity | ≤50μg/g2 | ≤50μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |

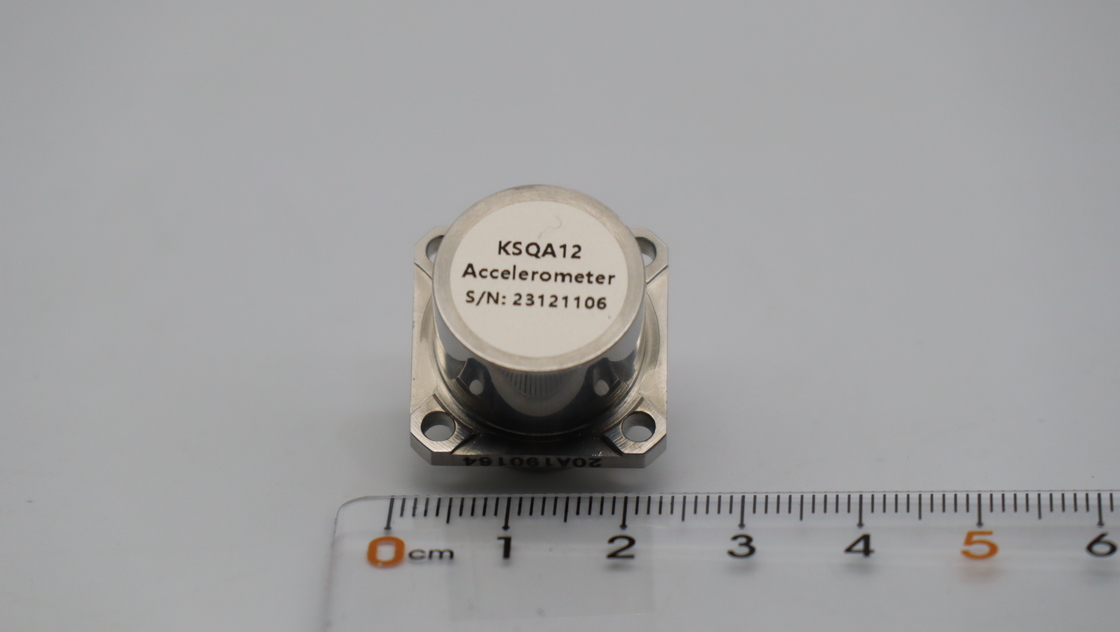

| Size | Ø18.2×23.6mm | Ø18.2×23.6mm |
| Weight | ≤35g | ≤35g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz | |
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
