Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQA08

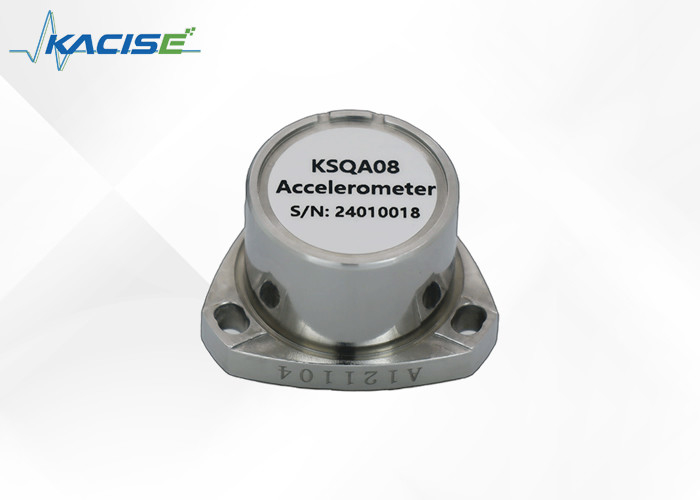

The Quartz flexible accelerometer is a precision instrument that consists of quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
At present, we offer a series of products for the Quartz Flexible Accelerometer. This series includes dozens of types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. Our products are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. They provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

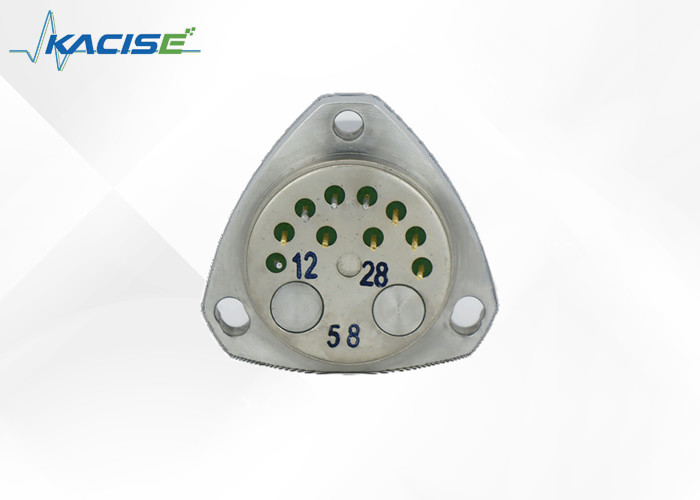

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
| Parameter | KSQA08A | KSQA08B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤10μg/°C | ≤30μg/°C |
| One-month Composite Repeatability (1σ) | ≤10μg | ≤30μg |
| Six-month Composite Repeatability (1σ) | ≤30μg | |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤10ppm/°C | ≤50ppm/°C |
| One-month Composite Repeatability (1σ) | ≤10ppm | ≤40ppm |
| Six-month Composite Repeatability (1σ) | ≤50ppm | |
| Linearity | ≤10μg/g2 | ≤40μg/g2 |
| Threshold | <1μg | <5μg |
| Resolution | <1μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤70g | ≤70g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz | |
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
The Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup of the sensor
- Troubleshooting and diagnosis of any technical issues
- Firmware and software updates
- Calibration and testing services
- Product training and education
The Accelerometer Sensor will be carefully packaged to ensure it arrives at your doorstep in pristine condition. The product will be placed in a sturdy box with ample protection to prevent any damage during shipping. The box will also include the necessary installation instructions and any other relevant documentation.
Shipping:
We offer fast and reliable shipping services to ensure that you receive your Accelerometer Sensor as soon as possible. Our shipping partners will deliver the package to your doorstep within the estimated delivery time, depending on your location. You will receive a tracking number once your package is shipped so you can track its progress.
