Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KWC-100C Meter

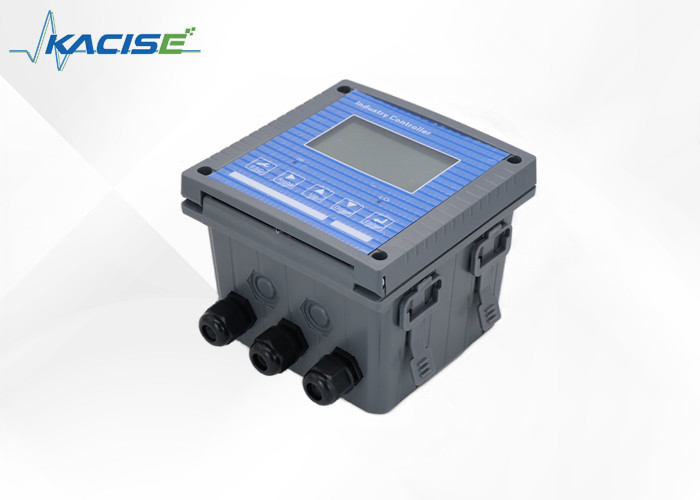

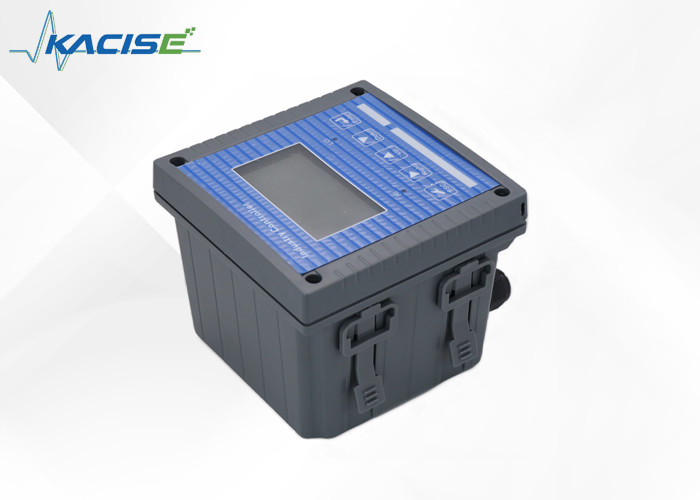

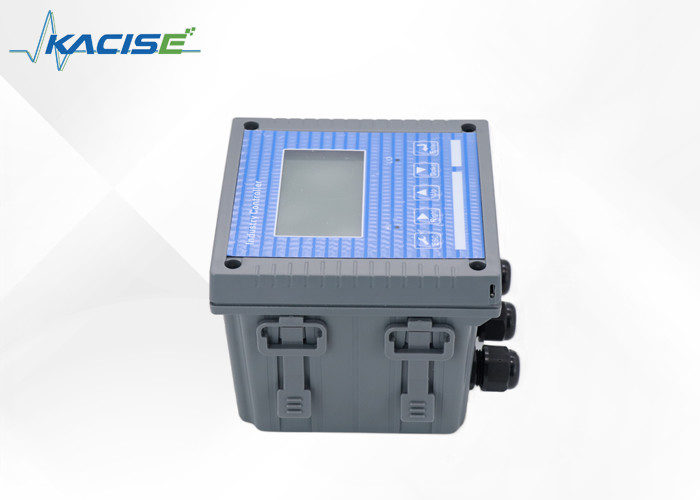

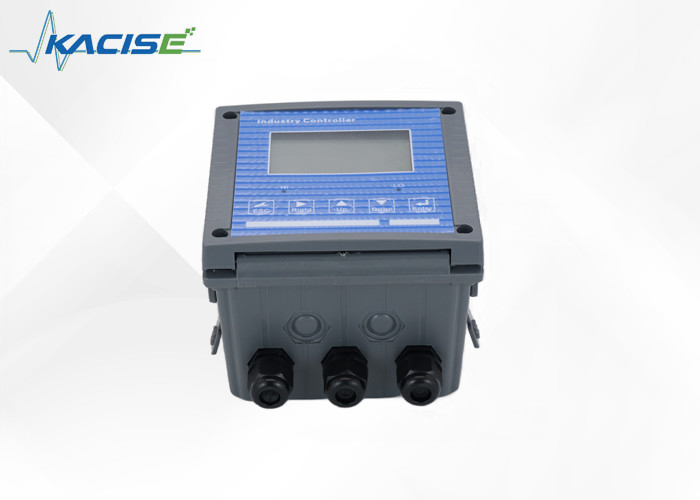

This online infrared CO2 meter is a newly designed intelligent controller that is mainly used in industrial settings. This product is highly intelligent and flexible in nature, making it a perfect fit for a variety of applications.
It is widely used in industries such as aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, food and much more. Due to its flexibility, it can be used in almost any industrial process that requires precise CO2 measurement.
The product is capable of measuring infrared CO2 levels in real-time, providing the user with accurate and reliable data to make informed decisions. The software that comes with it allows for remote monitoring and control, which makes it easy to use and manage from anywhere.
This cutting-edge CO2 meter can be utilized for monitoring emissions for environmental purposes, ensuring the safety of workers in industrial settings, and even for improving the quality of food products. Overall, the industrial online infrared CO2 meter is an essential tool for professionals in various industries, providing accurate measurements and improving overall efficiency and safety.
This online infrared CO2 meter is a newly designed intelligent controller that is mainly used in industrial settings. This product is highly intelligent and flexible in nature, making it a perfect fit for a variety of applications.
It is widely used in industries such as aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, food and much more. Due to its flexibility, it can be used in almost any industrial process that requires precise CO2 measurement.
The product is capable of measuring infrared CO2 levels in real-time, providing the user with accurate and reliable data to make informed decisions. The software that comes with it allows for remote monitoring and control, which makes it easy to use and manage from anywhere.
This cutting-edge CO2 meter can be utilized for monitoring emissions for environmental purposes, ensuring the safety of workers in industrial settings, and even for improving the quality of food products.
Overall, the industrial online infrared CO2 meter is an essential tool for professionals in various industries, providing accurate measurements and improving overall efficiency and safety.
| Range | CO2 (0-5000ppm)/or customized |
| Accuracy | ±20ppm or ±5%FS true value, whichever is greater |
| Resolution | ±1ppm |
| Signal output | RS485 isolated output. (4-20mA output optional) |
| Alarm output | normally open contact relay (3A/250VAC) |
| Power Supply | AC 220V |
| Power consumption | 3W |
| Environmental conditions |
Temperature 0～60 ℃ Humidity ≤85%RH |
| Dimension | 144×144×115mm (height×width×depth) |
| Hole size | 138×138mm (height×width) |
Combination of sensor and protection tube
Before installation, please check whether the cable appearance is damaged and spread out the cables.
1. When using the immersing sensor, avoid the sensor from hitting the wall or other facilities due to water flow. If the water flow is too fast, the sensor must be fixed.
2. There should not be any obstruction in front of the measuring face. For example, the fluorescence sensor should avoid light exposure.
3. The water depth at which the sensor is installed should not exceed 2 meters from the horizontal plane, and according to water flow fluctuations, the water depth at the installation location should not be less than 30 centimeters. (Can be adjusted according to the measured water body)
4. The sensor should be installed in a location where no bubbles are generated to prevent bubbles from affecting the sensor’s measurement data.
5. Do not use the sensor's own cable to hoist the sensor. Install a cable protection device to prevent the cable breaking due to the great tension between the sensors and cable.
6. The sensor should not be installed with the measuring surface facing up. It can be installed vertically downward or horizontally.
7. If you use this product in a water diversion channel, please consult the company's sales staff to confirm the specific installation requirements.

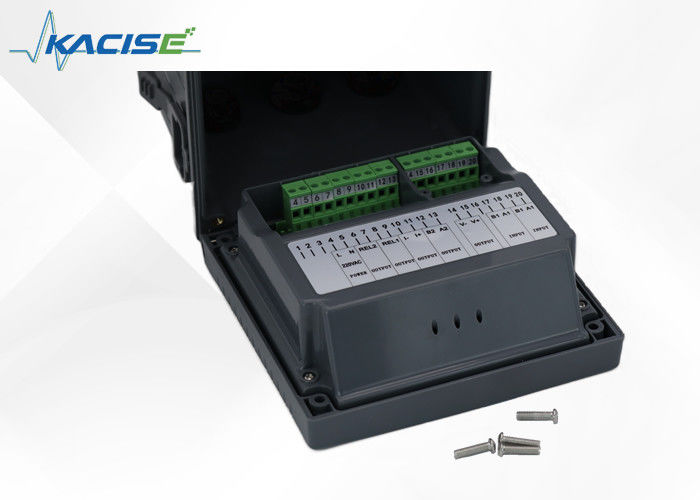

Backplane terminal connection
Notice:
Power supply: 220V
Power consumption: 3W
Relay: withstand voltage 240VAC, maximum current 3A.
1 NC: empty foot
2 NC: empty foot
3 NC: empty foot
4 N: Instrument working power supply 220VAC
5 L: Instrument working power supply 220VAC
6 R2: Low point alarm relay (output)
7 R2: Low point alarm relay (output)
8 R1: High point alarm relay (output)
9 R1: High point alarm relay (output)
10 NC: empty pin (or optional I-: 4-20mA current output-)
11 NC: empty pin (or optional I+: 4-20mA current output+)
12 B2: Output RS485B- (output)
13 A2: Output RS485A+ (output)
14 VO-: Output power supply- (output, connect to the negative pole of the sensor power supply)
15 VO+: Output power + (output, connect to the positive pole of the sensor power supply)
16 NC: empty foot
17 B1: Connect to sensor RS485B- (input)
18 A1: Connect to sensor RS485A+ (input)
19 B1: Connect to sensor RS485B- (input)
20 A1: Connect to sensor RS485A+ (input)
For example:
The product is an extremely intelligent and adaptable one, capable of being widely implemented across numerous industries. These industries include but are not limited to aquaculture, urban sewage treatment plants, electric power generation, water supply, medicine, chemical industry and food production.
KACISE offers product customization services for the Water Quality Sensor Meter, Model Number KWS-100C Meter. This inline morning sensor is designed and manufactured in China and certified with CE. The minimum order quantity is 2pcs, and the price is USD150 per unit. The packaging details include a carton, and the delivery time is 5 working days. Payment terms require 100% TT in advance.
The Water Quality Sensor Meter is a high-precision water quality monitor sensor with a temperature operating range of 0-60℃. Its dimensions are 144×144×115mm, making it suitable for a variety of applications, especially as a water quality meter. The measurement range for CO2 is 0-5000ppm, and it can also be customized to meet specific needs.
In addition, the Water Quality Sensor Meter comes with an RS485 Modbus RTU PH transmitter, which allows for easy data transmission and integration with other systems.
