Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSFG-120
วิดีโอ
วิดีโอ

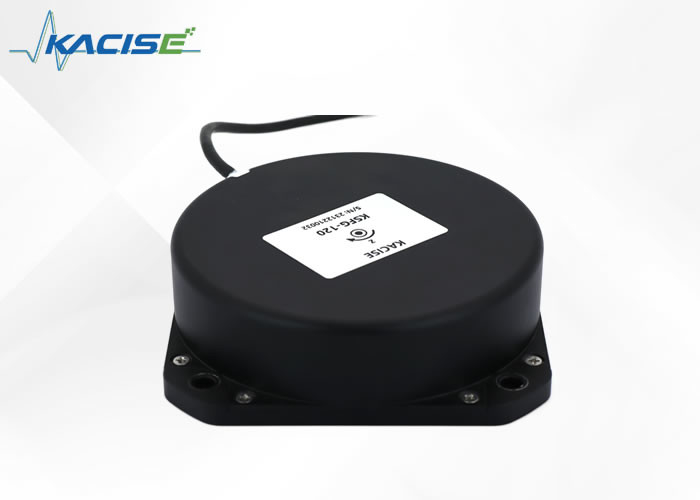

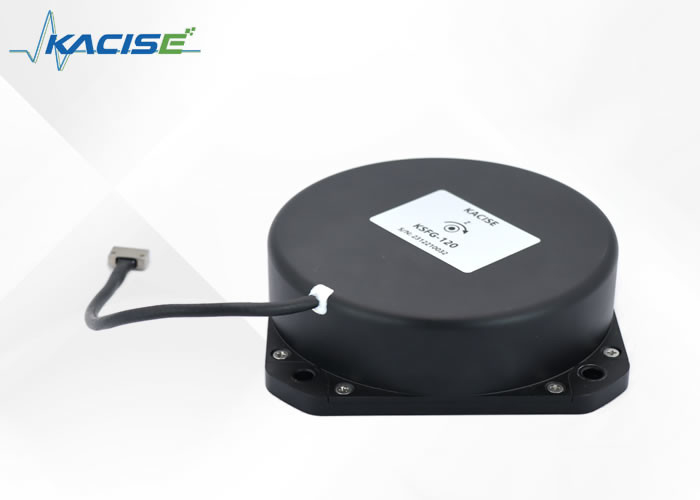

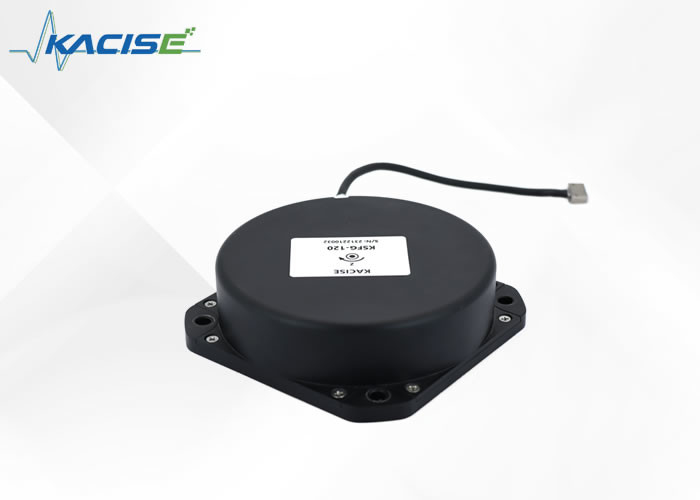

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°/h) | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | Weight (g) | ＜1000 | ＜1000 |
The Electronic Gyroscope Sensor is packed in a safe and secure box with proper padding to ensure no damage occurs during transportation. The box also has a waterproof seal to protect the product from any external elements or moisture. The box is then securely closed and taped for extra protection.
The box is then shipped to the customer using a reliable, insured shipping carrier. The tracking number is also provided to the customer so they can easily track their order until it is delivered.
