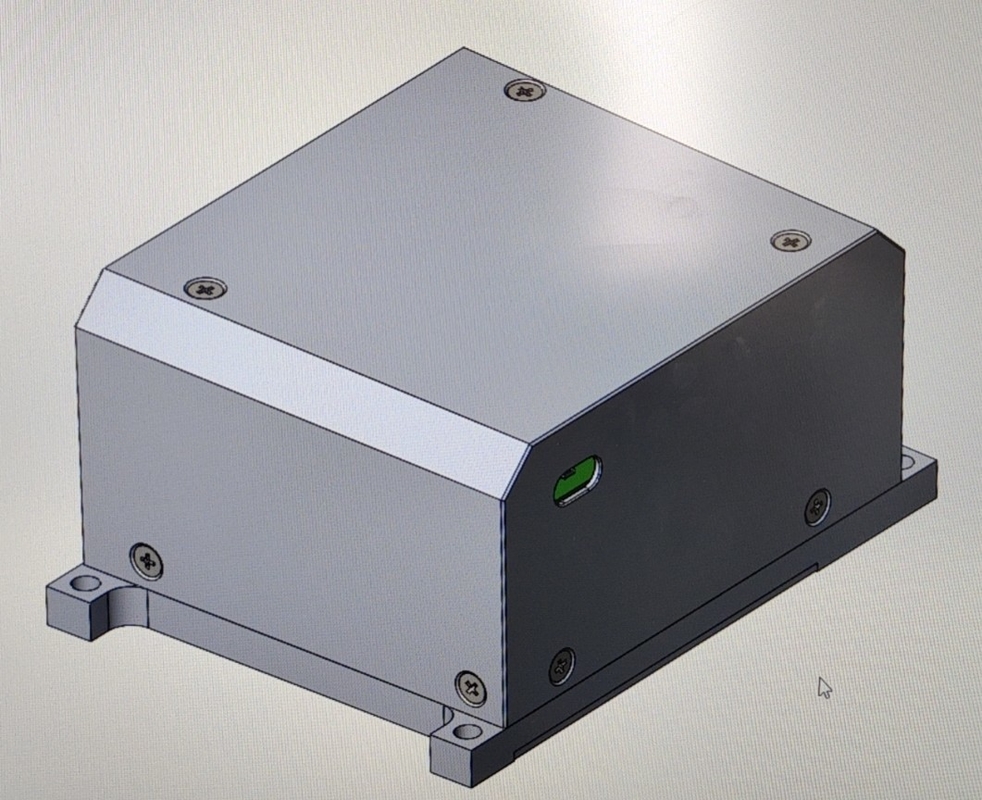

Depicted in the figure below, the KSFG3X36-1 fiber optic gyro is a three-axis gyro with low precision, offering advantages like a compact form factor, lightweight build, absence of moving parts, high reliability, and extended lifespan. Its digital output is easily integrated into systems, enabling its use in aviation, aerospace, maritime, defense, coal mine measurements, automotive electronics, and diverse fields.
The fiber optic gyroscope principle, rooted in optical principles, serves as the foundation for inertial navigation instruments. Optical fiber characteristics are harnessed to measure rotational angular speed, facilitating accurate determination of directions such as heading, pitch, and roll. The rotation of the optical loop induces changes in the optical path, and by detecting the resulting phase difference or interference fringe changes, the rotation angular speed of the optical path is measured.
| Number | Parameter | Units | I | II |
| 1 | Zero bias stability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 2 | Zero bias repeatability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 3 | Zero bias stability at full temperature(1s,10s) | °/h | ≤1 | ≤2 |
| 4 | Random walk coefficients | °/h1/2 | ≤0.01 | ≤0.1 |
| 5 | Scale factor nonlinearity | ppm | ≤50 | ≤100 |
| 6 | Scale factor asymmetry | ppm | ≤50 | ≤100 |
| 7 | Repeatability of the scale factor | ppm | ≤50 | ≤100 |
| 8 | Full temperature scale factor change | ppm | ≤250 | ≤500 |
| 9 | Range of measurement | °/s | -500~+500 | -500~+500 |
| 10 | bandwidth | Hz | ³500 | ³500 |
| 11 | Steady-state power consumption | W | ≤5.0 | ≤5.0 |
| 12 | Resistance of insulation | MΩ | ＞100 | ＞100 |
| 13 | Operating temperature | ℃ | -40~+60 | -40~+60 |
| 14 | Temperature of storage | ℃ | -50~+75 | -50~+75 |
| 15 | weight | g | ≤300 | ≤300 |

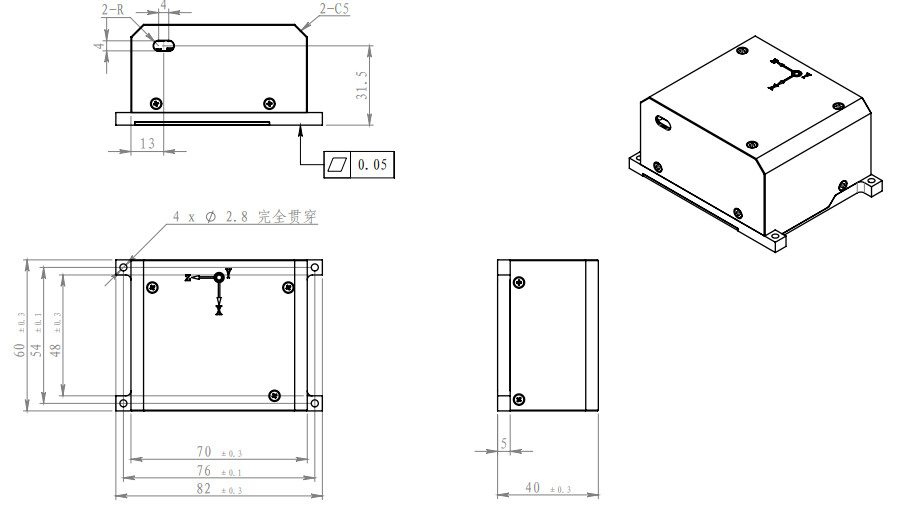

| 16 | Dimensions | mm | 60*70*40 | 60*70*40 |
We provide technical support and service for the Electronic Gyroscope Sensor to ensure an optimal user experience.
