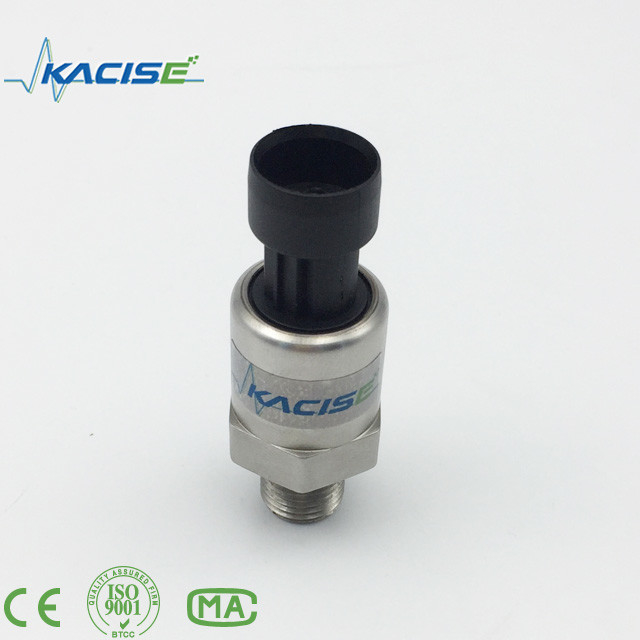

Hydraulic control Compressor pressure sensor

Spec.

Value

Pressure range

0~2bar ......600bar

Load pressure

1.5times nominal value pressure (1.5X)

Rupture pressure

3times nominal value pressure (3X)

Accuracy

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Stability

Typical value 0.5%F.S,     Max. value: 1%F.S

Operating temperature

-40°C~100°C

Compensation temperature

-10°C~ 80°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

2 wire system

3 wire system

Output signal

4~20mA

0.5~4.5V

Power supply

10~30Vdc

5Vdc

10~30Vdc

Load pressure

(U-10)/0.02(Ω)

>100kΩ

Insulation

>100MΩ@50V

Electric strength

500V@60 second

Vibration/Impact

10g/5~2000Hz, axes X/Y/Z20g sine 11ms

Pressure durable

2×10⁶pressure circle @25°C

Electrical connection

Packard, Hirsmann , air plugs, fixed cable, water proof cable

Pressure port

G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,

Pressure type

G, S

Response time: 10ms

Certificate

Intrinsically safe mode E, RoHS; CE

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

GX-PT1200A current output

GX-PT1200V Voltage output

GX-PT1200-KX Specialized for Frequency conversion water supply system

2 wire

3 wire

Cable

Hirsman

Air plug

Packard

Power

Power

Red

1

1

1

Output

Output

Blue/green

2

2

2

Power ground

Black

3

3

3

Shielded

Shielded

Yellow
