Place of Origin:
Shaanxi, China
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
CE
Model Number:
KFDO601

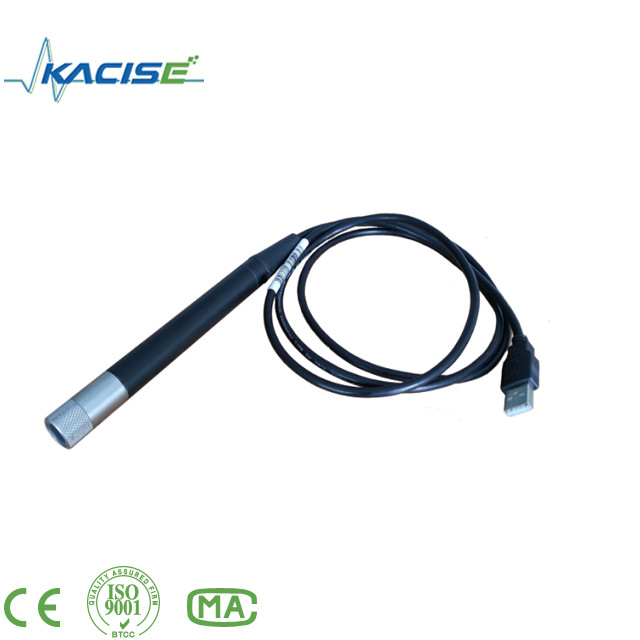

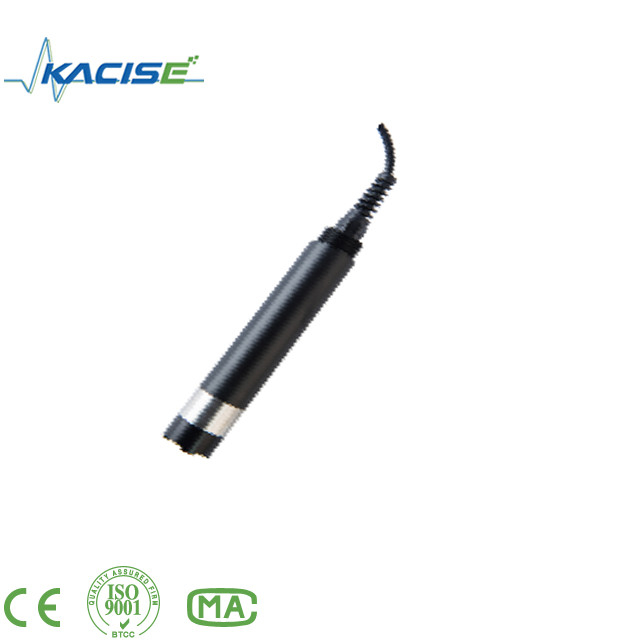

Optical Dissolved Oxygen sensor
1. Applications
2. Feature
3.Technical Specifications
| product | Online fluorescence dissolved oxygen sensor | |
| principle | Ultraviolet fluorescence method | |
| Measuring range | 0~20mg/L | |
| Response time | 10 sec | |
| accurate | 1% | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| Fluorescent cap life | 1 year | |
| Maximum working pressure | 6bar | |
| product material | POM or ss316 | |
4.Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
