KUS anti-corrosion PTFE / PVDF ultrasonic senor for level and distance measure in corrosive environment

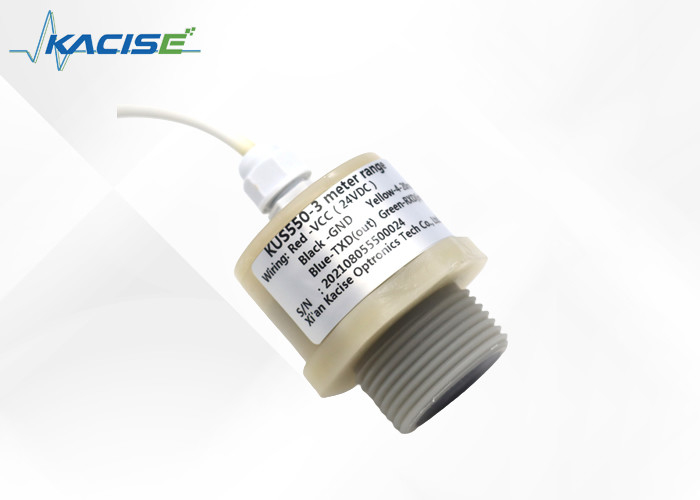

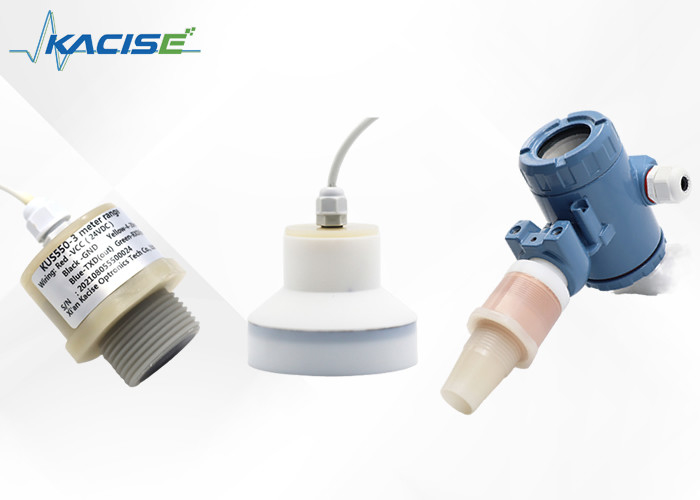

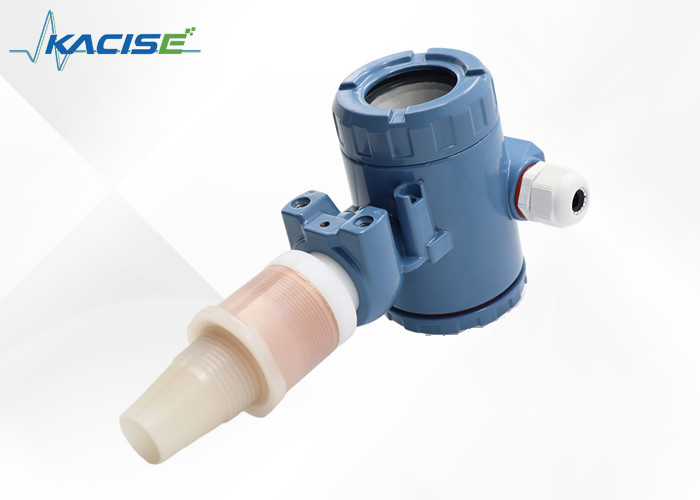

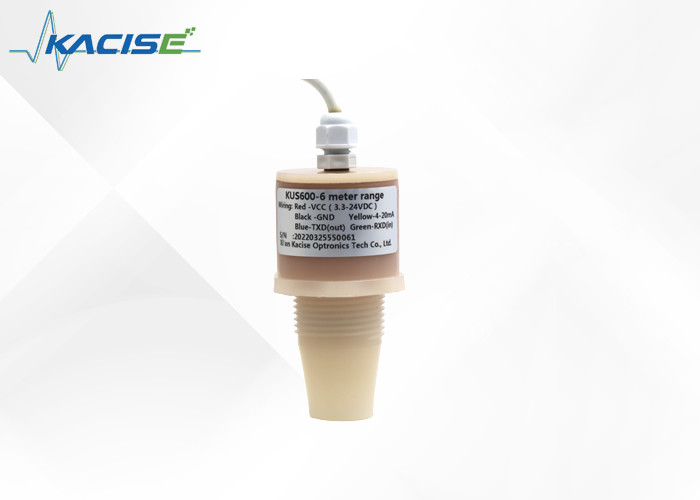

KUS Series Ultrasonic Sensor

1. Features

• Working frequency bandwidth
• Wide application scenarios
• Non-contact continuous measurement reduces maintenance
• The sensor uses tetrafluoroethylene material, which can be used in various corrosive scenes
• Adopt new waveform calculation technology to improve the measurement accuracy of the instrument


2. Description

KUS series low-power ultrasonic level sensor is real low-power ultrasonic sensor with low operating current, short settling time and good stability. Especially suitable for power supply, the response time is short, the transmission time does not exceed 1ms, and it adapts to the requirement of short wake-up time. It has the characteristics of low voltage, low power consumption, easy installation and use; temperature digital compensation function, wide operating temperature range; high precision, high frequency response, good stability; shock resistance, fatigue resistance, high reliability.

Adapt to the industry: Internet of things, water supply, industrial control and other fields.

In addition to low power consumption, they also have excellent corrosion resistance.In the measurement, the pulsed ultrasonic wave is sent by the sensor (transducer), and the sound wave is received by the same sensor after being reflected by the surface of the object, and converted into an electrical signal, and the distance between the sensor and the measured object is calculated by the time between the emission and reception of the sound wave . Since the anti-corrosion ultrasonic level gauge adopts non-contact measurement, the measured medium is almost unlimited, and it can be widely used to measure the height of various liquids and solid materials.

3.Low power consumption mode

Work mode set to 2 is low power concumption working mode.

How to realize the low power consumption ultrasonic level and distance sensor

a) Use low power ICs

    We use almost new ICs by wich the power consumption is normally low.

b) Controll the power of each circuit in the sensor.

    There are three parts of the circuit in the sensor, the transmitting circuit, the receiving circuit and the basic circuit of the mcu.  The mcu realizes power consumption management by enabling control of the work of each part of the circuit, and then controls the power  consumption.

c) When the mcu itself is not working, it enters sleep mode to further reduce power consumption.

4.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5.Ordering information
