Place of Origin:
China
ชื่อแบรนด์:
Kacise
Model Number:
KUS600

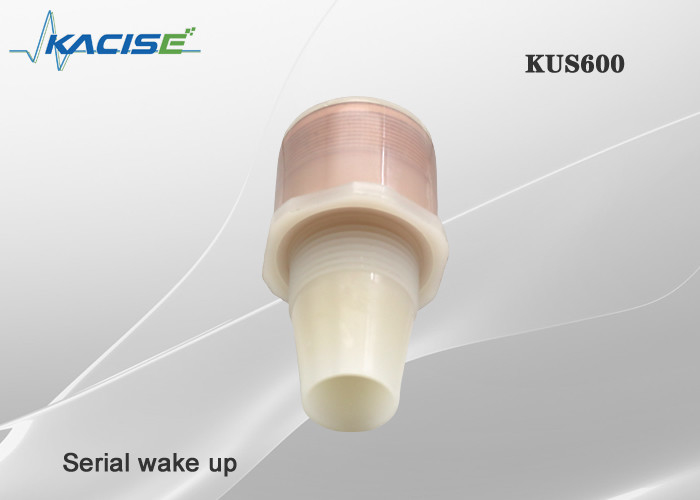

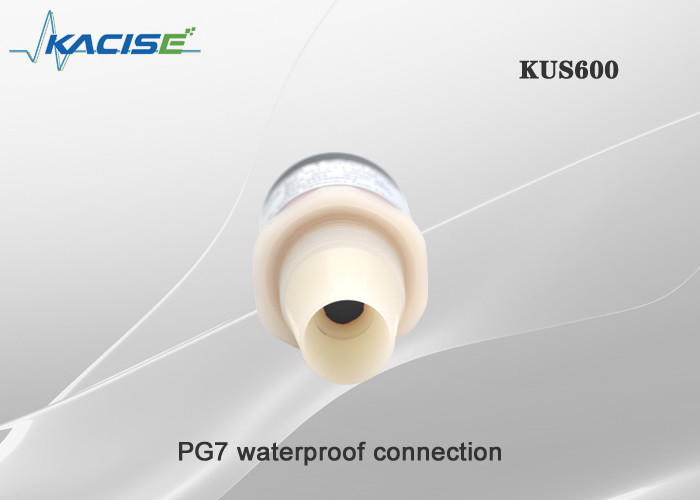

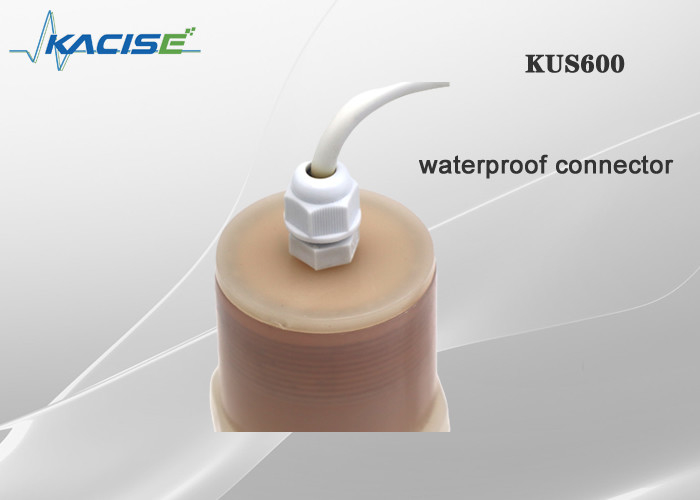

KUS600 Series Ultrasonic Sensor
1. Features
2. Dimension
Unit in the diagram is mm.

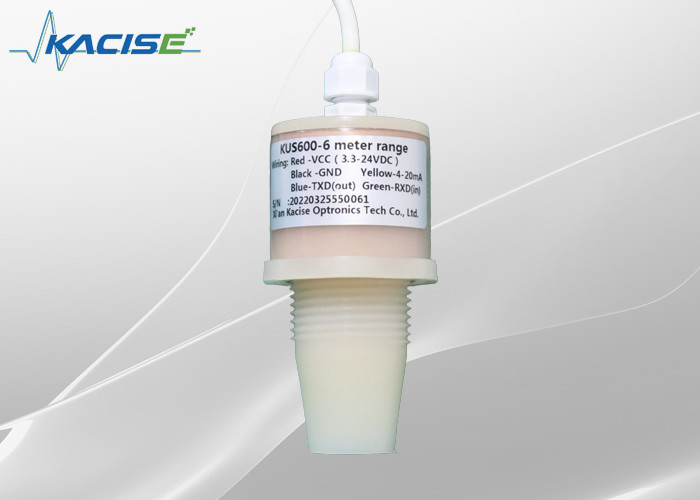

3. Electronic interface and signals definition
| Wire color | Pin | Description | Note |
| Red | 1 | Power supply | 3.3V-24V |
| Black | 2 | GND | |
| Yellow | 3 | Analogue output | Low power version hasn’t analogue output |
| Blue | 4 | RS485A+ | |
| Green | 5 | RS485B- |
4. Parameter
|
Model:KUS600 |
||

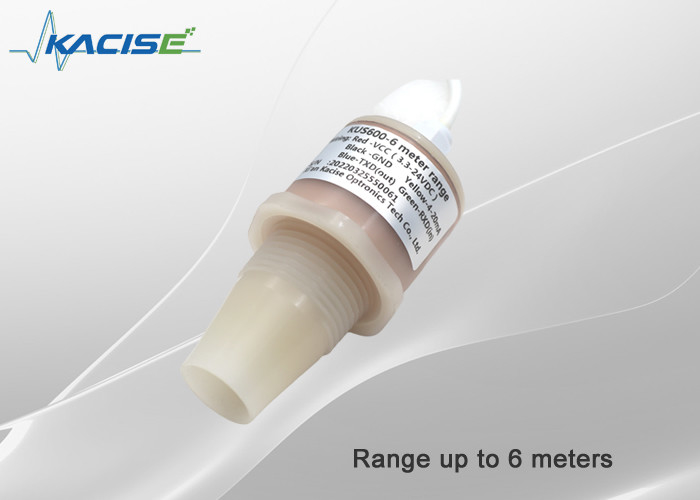

| Range | 0.6m-5m, low-power product supports wide voltage input, this range is for 3.3V power supply (6m range customizable) | |
| Unusable area | 0 ...0.6m | |
| Power supply | 3.3V-24V | |
| Power consumption | less than 0.3mA when sleep, less than 20mA when emitting, less than 5mA than when measurement | |
| Output signal | 0-5V /4-20mA/NPN/PNP/RS485 | |
| Electrical connection | 5-core cable (analog), 6-core cable (switch) | |
| Ranging resolution | 1mm | |
| Measurement accuracy | 0.5%-1 %F.S. | |
| Temp. compensation | Yes | |
| Working temperature | -25…70℃(233...358K) | |
| Storage temperature | -40…85℃(233...358K) | |
| Protection class | IP68 | |
| Casing Material | PVDF | |
5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, it should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the nuts, it has to be fixed at the middle of the housing thread.
6. Ordering information
| KUS | Body size | Output | Max range | Description | |
| 600 | |||||
| Customized | Customized | ||||
| 4-20mA | 4-20mA mode output with RS485 MODBUS protocol | ||||
| 0-3.3V | The power supply range is 3.3 at least | ||||
| 0-5.0V | The power supply range is 5.0 at least | ||||
| RS485 | Power save mode with RS485 MODBUS protocol | ||||
| XX m | XX m is the maxim range can be detected, the default length is 1 meter | ||||
| KUS | 600 | RS485 | 3m | ||
7.PVDF Corrosion Resistance Data Sheet
|
