Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control

mems gyroscope sensor

gyroscope sensor module

Place of Origin:

China (Mainland)

ชื่อแบรนด์:

Kacise

ได้รับการรับรอง:

certificate of explosion-proof, CE

Model Number:

GX-ROB100

สนุกสนาน
สนุกสนาน
รายละเอียดสินค้า
Input voltage (Vdc):
7.5 ~ 32Vdc
Measuring range (°):
± 15 ~ ± 90
Bias:
≤ 0.2
Bias Repeatability:
≤ 0.05
Start time (s):
<0.5s
Bandwidth:
8-28Hz
Resolution(°):
≤ 0.03
Performace:
DIP
เน้น:

mems gyroscope sensor

,

gyroscope sensor module

เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
สินค้าที่เกี่ยวข้อง
ราคาดี Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance ออนไลน์ วิดีโอ

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

หา ราคา ที่ ดี ที่สุด
ราคาดี Well Logging Dynamically Tuned Gyroscope For High Temperature Environment ออนไลน์ วิดีโอ

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

หา ราคา ที่ ดี ที่สุด

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

หา ราคา ที่ ดี ที่สุด

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

หา ราคา ที่ ดี ที่สุด
ติดต่อเรา
86--17719566736
สนุกสนาน
คําอธิบายสินค้า

Angel Measuring Instruments Level Measurement Platform and Platform level Control GX-ROB100 Biaxial inclination Sensor

Feature

  • Built-in angle conversion and temperature compensation, small error.
  • Data output via RS422 interface.
  • Metal shell, anti-interference



Product description



Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.



Application field



  1. Angle measuring instruments,
  2. Level measurement platform,
  3. Platform level control,
  4. Measuring instruments and heavy mechanical stability,
  5. Acceleration and motion measurement,
  6. Automotive control, inertial navigation,
  7. Seismic monitoring and other measurement systems

Datasheet



Technical parameters performance indicators
Input voltage (Vdc) 7.5 ~ 32Vdc
Performance Dip
Measuring range (°) ± 15 ~ ± 90
Bias ≤ 0.2
Bias stability ≤ 0.05
Bias Repeatability ≤ 0.05
Start time (s) <0.5s
Bandwidth 8-28Hz
Resolution(°) ≤ 0.03
Nonlinearity (% FS) <0.05% of FS
Data refresh rate 50ms
Inter face RS422 interface
Working Temperature (℃) -40 ℃ ~ +85 ℃
Storage Temperature (℃) -55 ℃ ~ +100 ℃
Resistance Acceleration(g) 20000
Weight (g) <150
Volume (mm3) 48 * 36 * 15



Dimension (unit: mm)

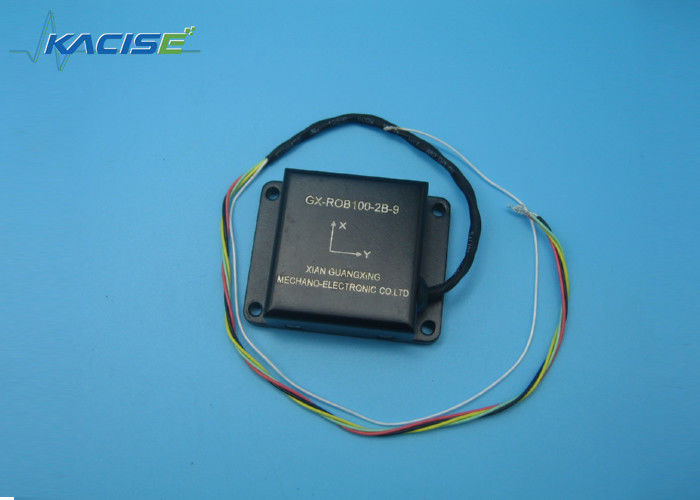

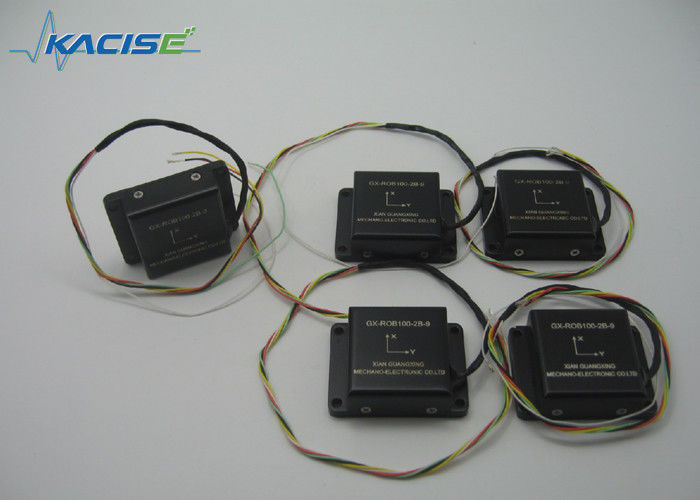

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control 0Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control 1
