Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
Model Number:
k-3jsj-200

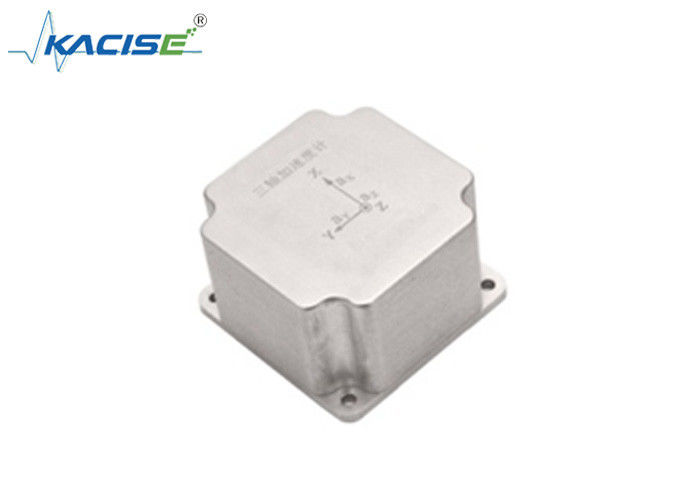

±10 g 10~30 VDC Digital RS422 output Triaxial Accelerometer Sensor Module
1. Product Description
An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.
Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.
2.Parameter
| Type | K-3JSJ-200 | ||
| Electric character | |||
| Input voltage | 10~30 VDC | ||
| Input current | ≤50 mA | ||
| Output Mode | RS 422V | ||
| Baud Rate | 115200 bps | ||
| Output Data Rate | 200 Hz | ||
| Output Data format | 16-bit twos complement | ||
| Performance index | |||
| Axial direction | X | Y | Z |
| Range | ±10 g | ||
| Bandwidth | ≥60 Hz | ||
| Resolution (°/s) | 0.001 g | ||
| Nonlinear (%FS) | ≤ 0.2% Fs | ||
| Bias | ≤ 0.01 g | ||
| Start-up time (ms) | ≤1s | ||
| Environmental characteristics | |||
| Temperature (°C) | -40℃~+70℃ | ||
| Storage Temperature | -40℃~+125℃ | ||
| Resistant to shock | 2000g | ||
| Physical Characteristics | |||
| Weight (g) | 150 g | ||

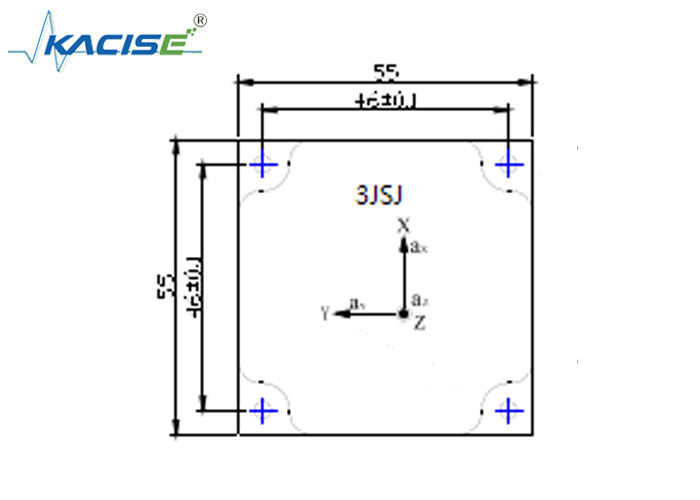

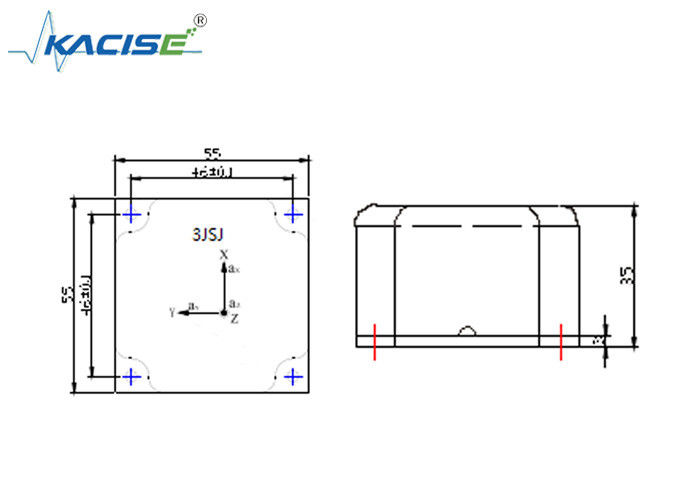

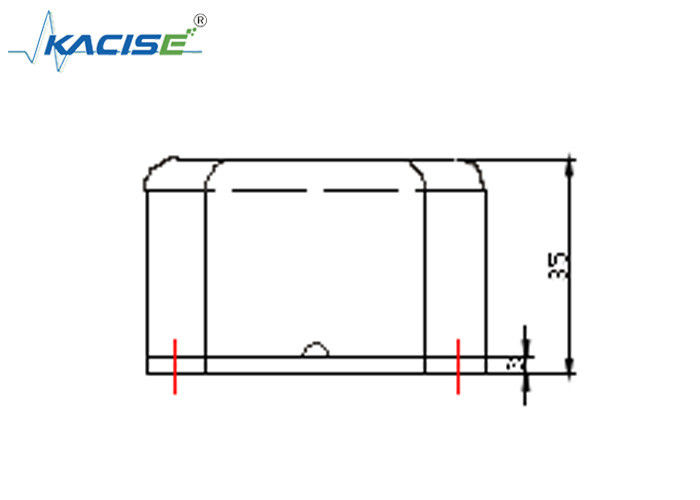

| Dimension | 55×55×35mm | ||
3.Feature
Digital RS422 output
Wide measuring range
Nonlinear correction and Cross coupling correction
Whole temperature range compensation
impact resistance, vibration performance
High resolution and stability
4.Application Field
Aircraft Stability control
inertial navigation system
